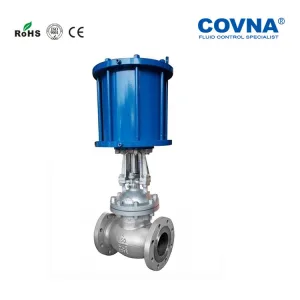

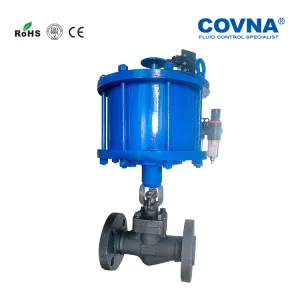

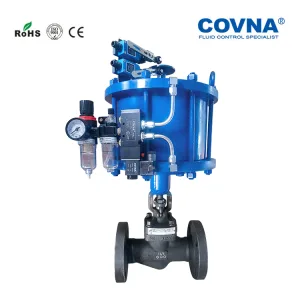

Linear Stroke Pneumatic Actuator for Valves
A Linear Stroke Pneumatic Actuator is a compact, high-performance device designed to automate valve operation using compressed air. It converts pneumatic energy into precise linear motion, enabling smooth and reliable control of gate valves, globe valves, and other linear-motion valves.
Key Features:
Fast & Precise Movement – Delivers quick, accurate stroke control for efficient valve positioning.
Durable Construction – Made of corrosion-resistant materials (e.g., aluminum, stainless steel) for long service life.
Fail-Safe Options – Spring-return or double-acting configurations for safety in critical applications.
Easy Installation – Compatible with standard valve mounts and pneumatic systems.
Low Maintenance – Minimal wear due to simple, robust design.
Typical Applications:
Oil & Gas – Pipeline shut-off and control
Water Treatment – Flow regulation in pumps and dosing systems
Chemical Processing – Reliable operation in corrosive environments
Power Plants – Steam and coolant valve automation

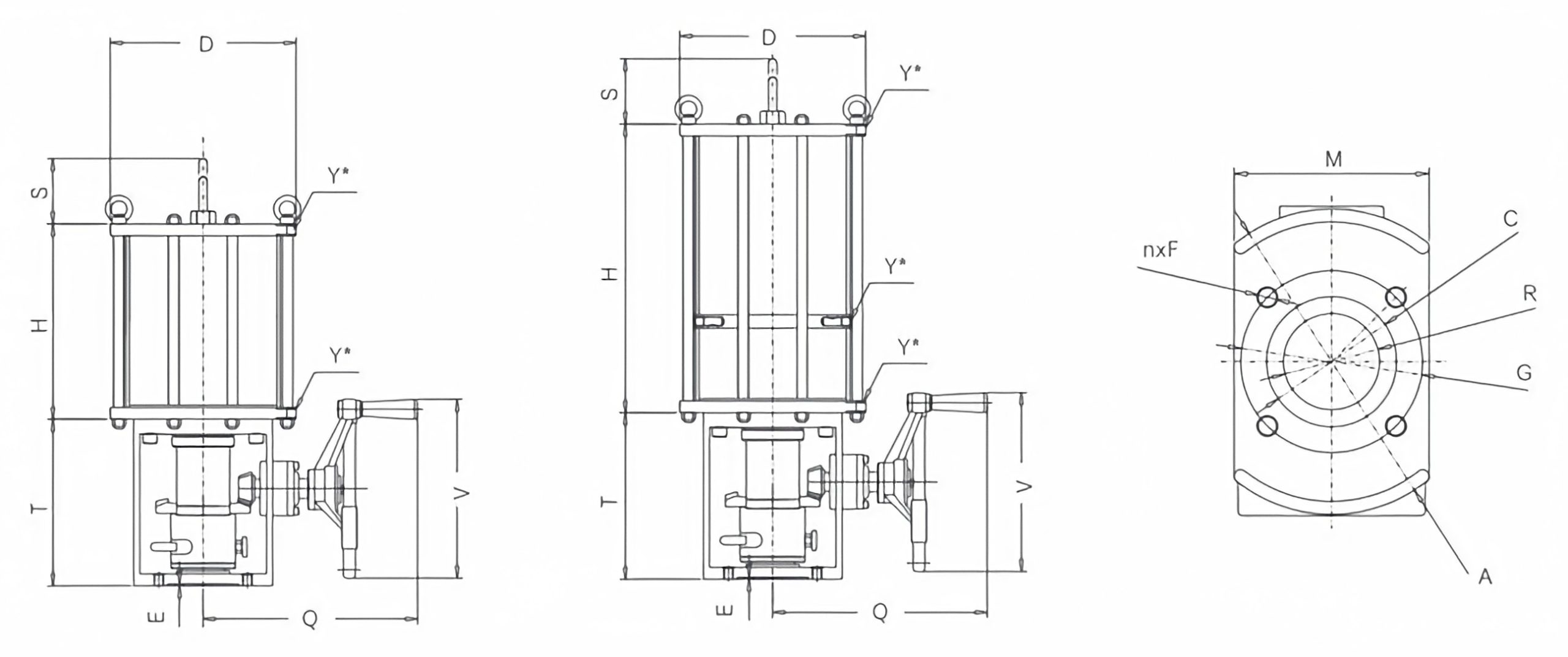

SINGLE ACTING NORMALLY CLOSED
| NO. | Part name | Material Science | Number |
| 1 | Piston rod | 45# | 1 |
| 2 | regulating screw | 45# | 2-4 |
| 3 | Lower cover | Q235B | 1 |
| 4 | Sealing element | NBR | 2 |
| 5 | piston | Q235B | 1 |
| 6 | Lock nut | 45# | 1 |
| 7 | cylinder block | 20# | |
| 8 | Spring end cover | Q235B+20# | 1 |
| 9 | Spring | 55Crsi/60Si2Mn | 1-2 |
| 10 | Upper bushing | AL | 1 |
| 11 | Indicator bar | 45#/304 | 1 |
| 12 | Sealing element | NBR | 2 |
| 13 | Rod bolt | 45#/304 | 4-12 |
| 14 | Nut | 304 | 1 |
| 15 | Sealing element | NBR | 2 |
| 16 | Guide ring | 66 PA66 | 2 |
| 17 | Sealing element | NBR | 2 |
| 18 | Guide ring/dustproof ring | 66 PA66/NBR | 2 |
SINGLEACTING NORMALLY OPEN
| NO | Part name | Material Science | Number |
| 1 | Piston Rod | 45# | 1 |
| 2 | Spring end cap | Q235B+20# | 1 |
| 3 | Spring | 55Crsi/60Si2Mn | 1-2 |
| 4 | Pull rod bolt | 45#/304 | 4-12 |
| 5 | Sealing element | NBR | 2 |
| 6 | piston | Q235B | |
| 7 | cylinder block | 20# | 1 |
| 8 | regulating screw | 45# | 2-4 |
| 9 | Upper bushing | AL | |
| 10 | Indicator pole | 45#/304 | 1 |
| 11 | Sealing element | NBR | 2 |
| 12 | Upper cover | Q235B | |
| 13 | Nut | 304 | 1 |
| 14 | Lock nut | 45# | 1 |
| 15 | Sealing element | NBR | 2 |
| 16 | Guide ring | 66 PA66 |
1 |
| 17 | Sealing element | NBR | 2 |
| 18 | Guide ring/dustproof ring | 66 PA66/NBR | 1 |
Order Notice
ZH series of MOCEM pneumatic actuator mechanism,a complicated automation control instrument,consists of pneumatic actuator,valve and various pneumatic components and accessories.Users can select components in detail and mark on the technical contract according to requirements of field control.
- PneumaticActuator: Pressure of air supply,mode of action,cylinder thrust,full stroke time,connecting bracket,manual mechanism.
- Valve: Specification model,nominal pressure,nominal diameter, valve thrust,circulating medium,actual working pressure, operating temperature,installation position.
- Locator: Brand and model,double acting or single acting,protection level,explosion-proof level,input signal,output signal, feedback signal,feedback bracket,HART module,LED display,operating temperature,material of accessory.
- Electromagnetic Valve: Brand and model,double-acting or single-acting,single electronic control or dual electronic control,two-position three way or two-position five way, voltage, power, protection level,explosion-proof level,electrical interface size,air source interface size,operating temperature, manual operation.
- Filter Pressure Reducing Valve: Brand and model,air lubricator,automatic drainage, operating temperature,material of valve body and pressure gauge,size of air source interface.
- Stroke Switch: Brand and model,mechanical or proximity,DPDT or SPDT or P&F,degree of protection,explosion-proof level, electrical interface size,material of accessory.
- Other Attachments: Air control valve, non-return valve, quick release valve, speed control valve, lock valve, speed increase amplifier, etc.
- SpecialRequirements：For the material, paint, interface size, and installation space, please contact sales representative.
Please move to product details.
