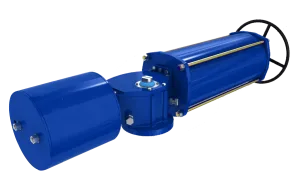

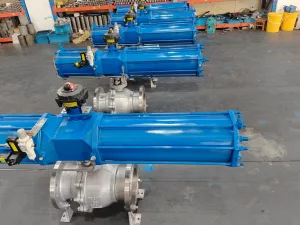

Fork Type Pneumatic Actuator for Valves
A Fork Type Pneumatic Actuator is a robust and compact actuator designed to automate quarter-turn valves (such as ball valves, butterfly valves, and plug valves) by converting pneumatic energy into smooth rotary motion. Its unique fork-shaped linkage ensures strong torque transmission and precise angular control (typically 90° or 180° rotation).
Key Features:
High Torque Output – Delivers strong rotational force for reliable valve operation.
Compact & Lightweight – Space-saving design ideal for tight installations.
Durable Construction – Made of aluminum, stainless steel, or coated alloys for corrosion resistance.

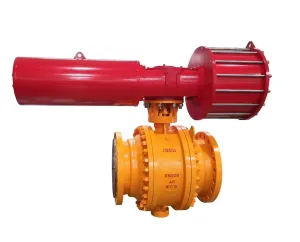

Double-Acting or Spring-Return – Options for fail-safe (auto-close/open on air loss) or continuous air-driven operation.
Easy Mounting – Compatible with ISO-standard valve interfaces (ISO 5211).
Low Maintenance – Minimal wear due to simple mechanical design.
Typical Applications:
Oil & Gas – Pipeline shutoff and control valves.
Chemical Processing – Corrosion-resistant actuation for aggressive media.
Water/Wastewater – Automated flow control in treatment plants.
Power Plants – Steam and cooling system valves.
Food & Beverage – Hygienic valve automation.
WORKING TECHNICAL CONDITIONS
| Travel Adjustment Range | The two independent external travel stop adjustment bolts can adjust±6° at both open and close directions easily and precisely. | |
| Working Air Supply Pressure | 0.3Mpa-0.7Mpa(0.2Mpa-1.0Mpa)。
0.3Mpa-0.7Mpa(Special working pressure 0.2Mpa-1.0Mpa) |
|
|
Operating Temperature |
Standard | -20℃~+80℃ |
| High Temperature | -20℃~+200℃ | |
| Low Temperature | -40℃~+80℃ | |
|
Application Range |
The characteristics of Utype curve output torque of pneumatic actuators are generally applicable to the switch and adjustment of large-diameter ball valves,butterfly valves and plug valves as well as used in other90°rotary applications. | |
|
Automatic Control Formula |
We has many years of experience in pneumatic control.It can design various pneumatic connection formulas according to customer needs and select proper control accessories to meet the requirements of users. |
|
PRODUCT CHARACTERISTICS
- IP67ProtectionRate:The connection parts of the centre body,cover and other parts of the pneumatic actuator are equipped with high- quality sealing ring which enables the protection rate reach IP67 and it can work stably in the harsh environment.
- NAMURMounting: The accessories mounting of pneumatic actuators are all in accordance with NAMUR which is convenient for mounting accessories such as limit switch box and positioner and so on.
- ISO Connection Dimension: The flange dimension of the connection between pneumatic actuator and valve is in accordance with ISO 5211 international standard,which is convenient for customers to install,disassemble and replace.
- Security Spring Module: The spring module is fixed ina unitary form after the spring has been compressed which improves the operational convenience and safety in the installation and maintenance of the spring module.

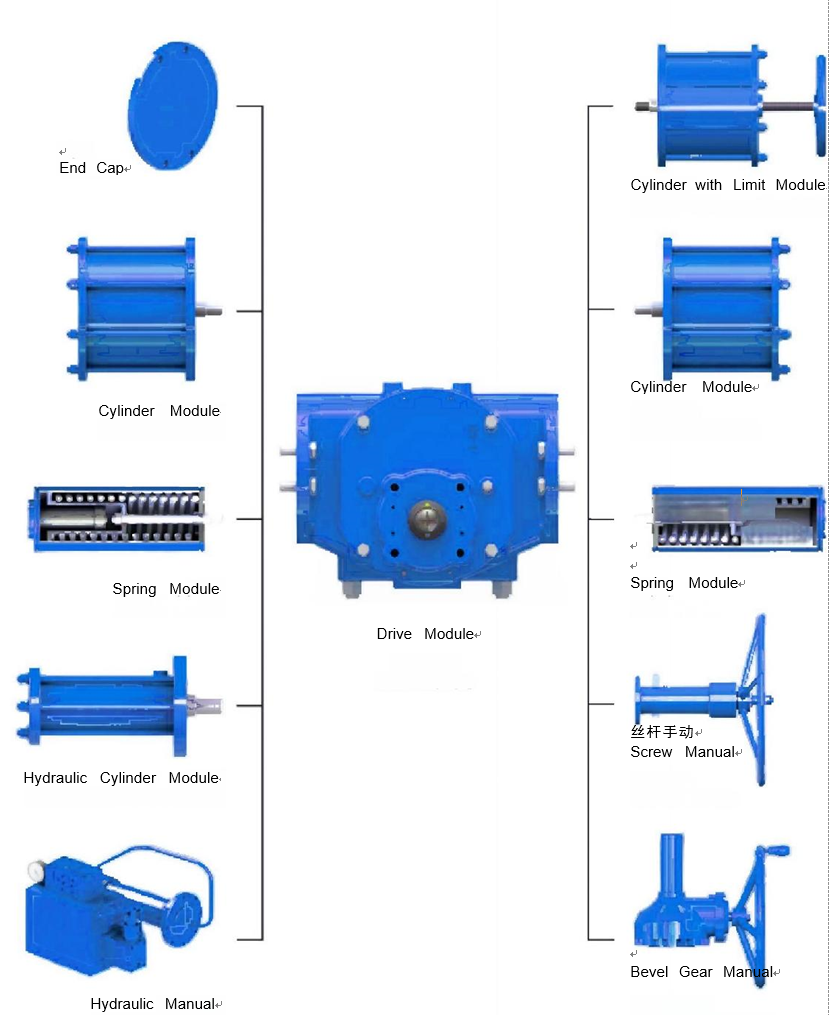

- Modular Design: Pneumatic actuator can be divided into independent modules such as drive module,cylinder module,spring cylinder module and manual device and can be installed and repaired according to personalized requirements of its customers.
- Protection Coat: The surface of the product is smoothed by shot blasting and polishing before spraying.The actuators are coated with epoxy zinc-rich primer and polyurethane topcoat.The thickness,firmness and anti-corrosion performance of the coat can agree to different harsh environments.
- Large Torque Range: Double acting actuators can provided maximum torque output of 220000N.M and spring return actuators can provide maximum torque output of 120000N.M(working pressure3-7 bar).
MULTI-FUNCTION MODULES

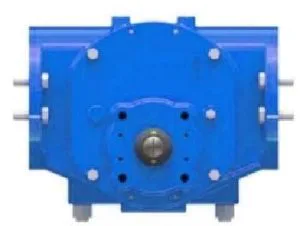

Drive Module:
1、The material of the body and the yoke are ductile iron which has better corrosion resistance,abrasion resistance and high separation performance.
2、The limit device can provide an angle adjustment of+6°.
3、It can provide maximum torque output of 220000Nm.
4、It has a variety of sealing methods and it selects high-performance seals which produced by high quality manufacturers to ensure that internal parts are not corroded and thus improve the life span.

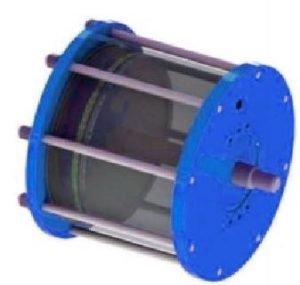

Cylinder Module:
1、The cylinder is made of seamless steel pipe and honed.The inner wall of the cylinder is plated with hard chrome and polished.Its anti-corrosion,anti-rust and high abrasion resistance performance can prolong the life span of the cylinder.
2、The material of the piston rod is alloy steel and the surface is chrome-plated and mirror-finished which enables it has excellent anti-corrosion,anti-rust and high abrasion resistance performance.
3、The overall design of the cylinder makes the it safe even under high pressure.
4、The inner surface of the cylinder is coated with high performance grease which can automatically lubricate and thus reduce friction and loss and prolong life span.

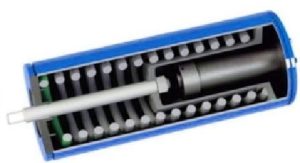

Spring Module:
1、The manufacturer has implemented the tensile and fatigue test which approve the spring life span can reach up to 500,000 times and its surface.
2、The design structure of seal welding enhances the operational safety. is anti-corrosion and anti-rust.
3、Epoxy coating continuously provides anti-corrosion protection for pre-stressed springs.
4、The steel spring seat is completely isolated from the external environment.
5、Its internal can add hydraulic module and it provides a variety of manual control methods.

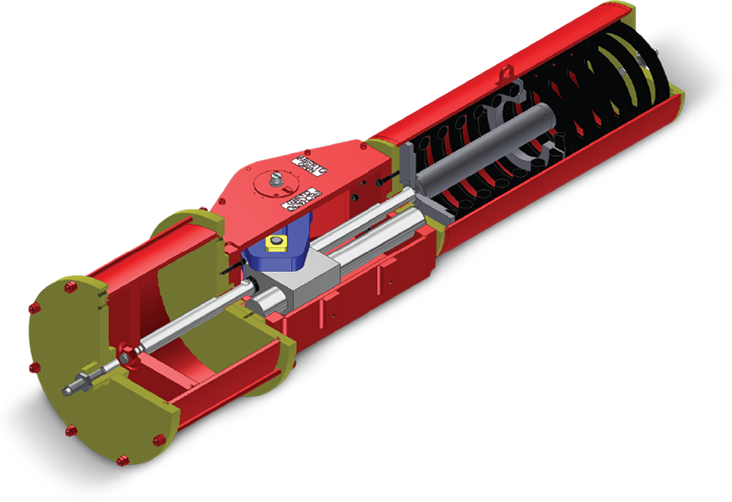

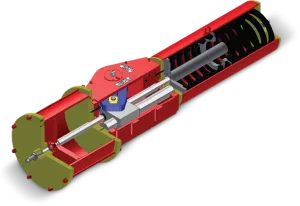

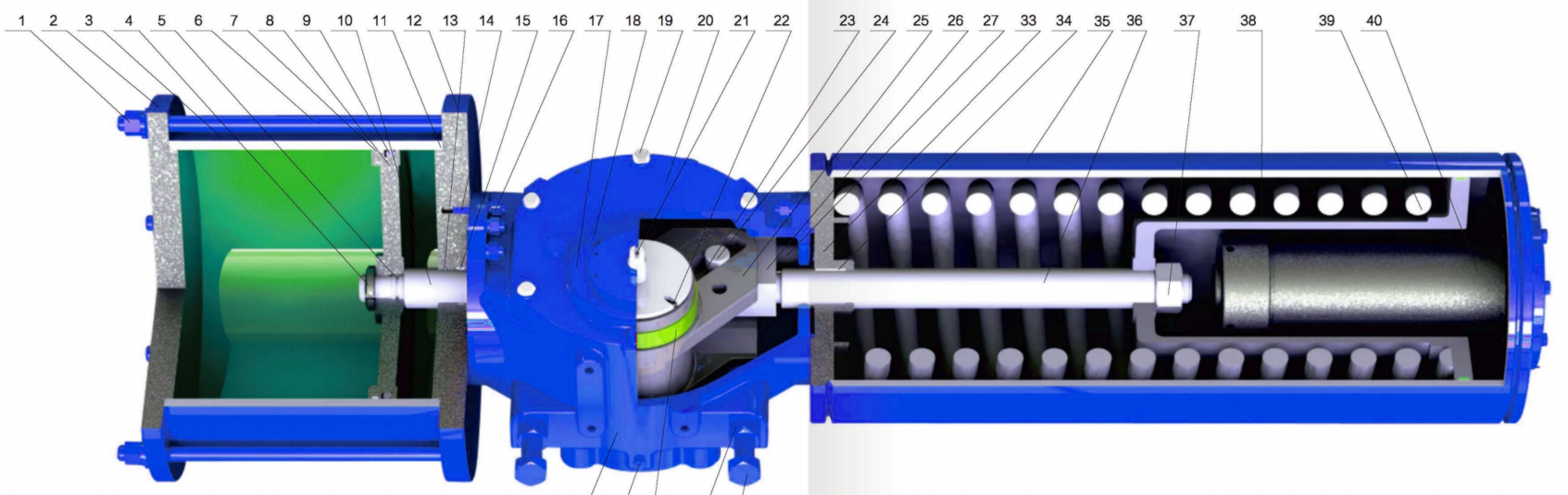

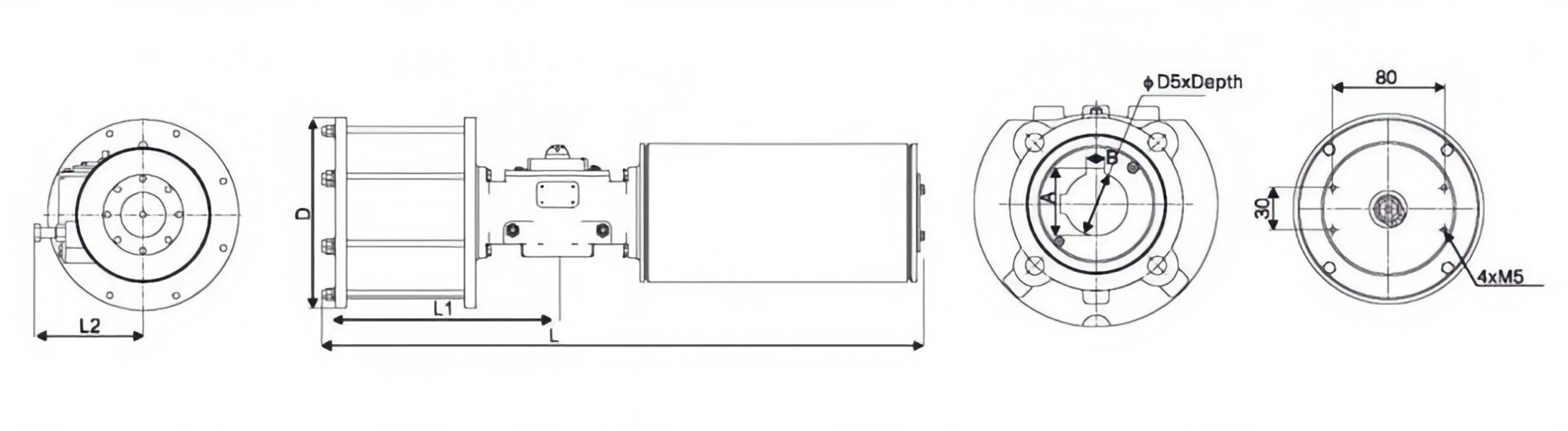

PRODUCT STRUCTURES
